Dense Enclosed Plug In Busduct System 6300A Pouring Bus Duct

6300A pouring bus duct dense enclosed plug-in Busduct System manufacturer direct supply customization

We offer a wide range of busbar trunking products and can tailor solutions and products to meet your specific needs. You are welcome to inquire via email or WhatsApp, and we will be happy to assist you. We wish you a pleasant work experience and a joyful life!

Selection parameters and technical parameters of dense bus duct

​

Technical parameters of XLC type bus duct

​

Key Features

1. This series of busbar slots has the advantages of safety, aesthetics, and reliability

2. Strong overload capacity;

3. Low temperature rise;

4. It has good load capacity and dynamic and thermal stability;

5. It can eliminate the phenomenon of uneven current distribution in spliced high-voltage cables, ensuring the reliability of power supply;

6. The shell is double grounded, ensuring high safety performance;

7. It has good short-circuit resistance and low energy consumption;

8. Maintenance, disassembly, and assembly are convenient and quick.

Field of application

The power supply systems of large factories and mining enterprises, large substations, captive power plants of large enterprises, from generators to step-up transformers, and from transformers to high-voltage distribution rooms, among other fields.

​

Casted Busway

1. Large capacity, with a wide range of series coverage from 100A to 4000A;

2. The protection level is up to IP68 (i.e., 100% waterproof and dustproof);

3. The use of epoxy resin casting structure avoids the problem of metal oxidation and corrosion;

4. The line voltage decreases, but the withstand instantaneous current value is high;

5. High structural strength, not easily affected by external forces, good mechanical properties, maintenance-free;

6. Compact structure, small size, and strong dynamic and thermal stability;

7. It is not limited by environment and altitude, and can be used for long periods in harsh indoor and outdoor environments, with good stability;

8. Capable of continuous operation under overload conditions.

Field of application

Power plants, substations, shipbuilding, paper making, ports, basements, petrochemical industries, steel smelting, coal mines, and other harsh environments.

​​

Key Features

1. The fire-resistant duration is 180 minutes;

2. Compact and dense structure, small size;

3. The shell is coated with fire-resistant paint, and the joint parts are equipped with fire-resistant baffles, effectively preventing flames or high-temperature gases from directly entering the interior of the busbar slot;

4. The busbar system has advantages such as low impedance and good dynamic and thermal stability;

5. Easy and quick maintenance, disassembly and assembly;

6. Fireproof materials can withstand high temperatures up to 1000 degrees;

7. Excellent electrical conductivity;

8. Suitable for power distribution requirements in various fire risk areas, ensuring continuous power supply.

Field of application

Teaching buildings, high-rise hospitals, high-rise hotels, financial buildings, office buildings, urban rail transit, government offices;

Buildings, large libraries, cotton spinning and mining enterprises, and other fields.

​

Key Features

1. Fully meet load demands;

2. Ultra-thin, compact, and aesthetically pleasing, with larger copper bar specifications, leading the industry in its field;

3. 360-degree comprehensive protection against dust, corrosion, moisture, water, rust, and impact, ensuring safety and reliability;

4. "Sandwich" structure, where the shell, insulating material, and conductor form a compact whole;

The perfect combination of the "亞" shape structure, with excellent load-bearing capacity, is one of the most perfect structures currently available;

6. Unique sawtooth shape design, with an oversized heat dissipation surface, reduces energy consumption;

7. Our product has achieved a critical structural design that integrates consumables, strength, and heat dissipation;

8. Dual neutral system ensures safer electricity usage;

9. Non-magnetic shell design, shielding magnetic field, eliminating magnetic eddy current interference.

Field of application

Fields such as shopping malls, schools, industrial plants, and rail transit.

Covering all fields, including but not limited to commercial complexes, real estate developments, data centers, hospitals, and hotels.

​

Dense Enclosed Plug In Busduct

Plug In Busduct System 6300A

6300A Pouring Bus Duct

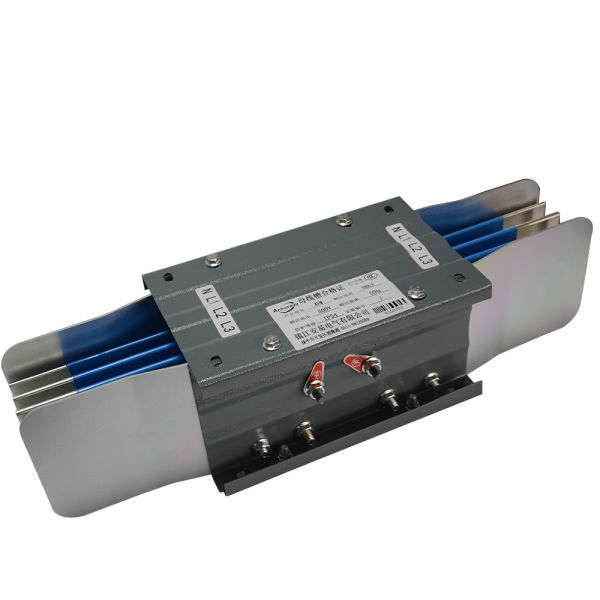

Dense Enclosed Plug In Busduct System 6300A Pouring Bus Duct Images
