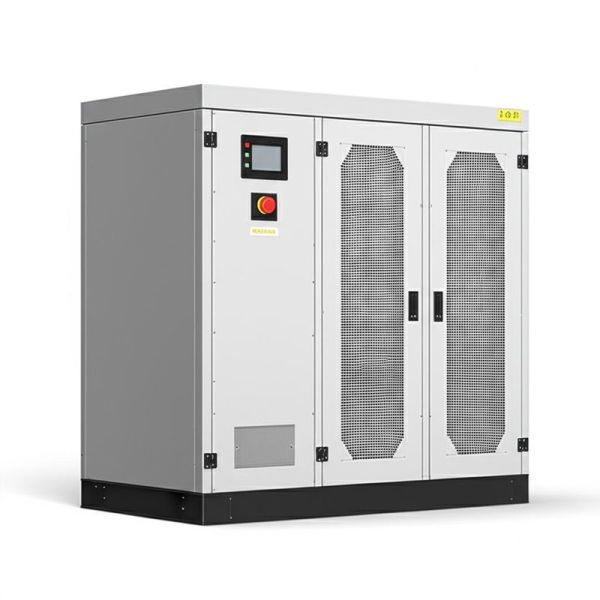

100kw/215kWh Photovoltaic Energy Storage integrated machine air-cooled
We offer a wide range of energy storage cabinet products and can tailor solutions and products to meet your specific needs. You are welcome to reach out via email or WhatsApp for inquiries. We are committed to providing you with assistance. May your work be enjoyable and your life filled with happiness!
Product Introduction
1. This is a 215kWh industrial and commercial energy storage system, which is a fully integrated pre configured solution suitable for scenarios such as photovoltaic energy, industry and commerce, power grids, power plants, charging stations, public services, etc.
2. Off grid microgrid systems are suitable for areas with unstable electricity, villas, farms, islands, oil extraction, and other areas without electricity. Main functions: self use, emergency backup power, oil engine management, wind turbine management, etc
3. This product is mainly suitable for industrial and commercial microgrid energy storage solutions, and is very efficient and reliable for small and medium-sized enterprises and businesses. If customers need to increase capacity, they can connect in parallel cabinets.
Main features
1. Security
Software+hardware+electrical, multi-level protection.
Independent cabinets achieve electrical and fire safety isolation, preventing the spread of accidents.
Convert DC convergence to AC convergence to prevent DC arcing.
2. Efficient
Cluster by cluster management, eliminating parallel losses and improving energy storage revenue.
PCS three-level topology, with a maximum efficiency of 99%.
3. High integration
Integrated: battery+BMS+PCS+EMS+fire protection+temperature control.
4. Easy to use
Rapid deployment, decentralized deployment and centralized scheduling.
Distributed, easy to expand, supports parallel connection of multiple cabinets on the AC side.
Fully modular design, easy to maintain.
Cloud monitoring+mobile app support.
Product parameters
| Project Category | Specification parameters |
| System nominal capacity | 215.04kWh |
| Grouping method of battery clusters | 1P15S |
| PCS rated charge/discharge power | 100kW |
| DC voltage range | 672V-864V |
| Voltage range on the grid side | AC400V±(-20%~15%) |
| Inverter operation mode | Three phase four wire grid connected operation |
| Operation mode | Grid connected operation |
| system efficiency | ≥85% |
| Power factor | -1~1 |
| Rated charging/discharging current | 0.5C |
| Storage temperature range (° C) | -30°℃~60°℃ |
| Allowable working temperature range | Discharge: -20~55 ℃; Charging: 0~55 ℃ |
| Best operating temperature range | 25±2℃ |
| System cycle times | ≥6000次 |
| relative humidity | RH≤95% |
| altitude | ≤2000m |
| protection grade | IP54 |
| size | 1800 * 2300 * 1200 |
| weight | 3000kg |
| External communication | Ethernet, wireless 4G |
| protection grade | IP54 |
| Anti corrosion grade | Not lower than C3 |
| System design lifespan | ≥ 10 years |
| External electrical interface | AC input: three-phase four wire+PE load output: three-phase four wire+PE photovoltaic input: one channel photovoltaic |
