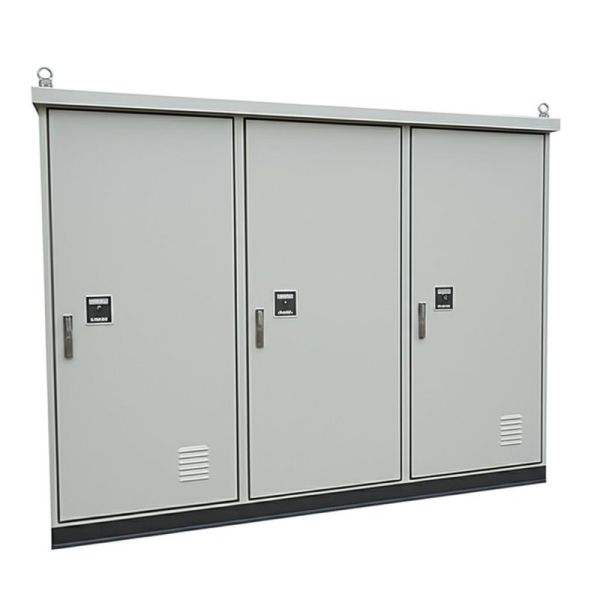

Outdoor Power Cabinet video surveillance network cabinet, outdoor rainproof and constant temperature security cabinet
We offer a wide range of outdoor cabinet products and can tailor-make solutions and products according to your specific needs. You are welcome to inquire via email or WhatsApp, and we will be happy to assist you. We wish you a pleasant work experience and a joyful life!
1,Product Description
|
Place of Origin
|
Guangdong, China
|
|
Brand Name
|
Verton
|
|
Model Number
|
Verton
|
|
External Size
|
Customized Size
|
|
Product Name
|
cabinet electrical telecom cabinet with external air conditioner
|
|
Working
|
-40°C ~ +55°C
|
|
Warranty
|
12 Months
|
|
Material
|
Galvanized Steel; Double Wall; Customer Requirement
|
|
Application
|
Telecom Power Outdoor Electronic Equipment
|
|
Package
|
Wooden Box
|
|
Surface treatment
|
Powder Coating
|
|
Function
|
Waterproof Dustproof
|
|
Structure
|
Welded/Frame/Assembly
|
|
Weight
|
100~225KG
|
2,Lead time
|
Quantity (pieces)
|
1 - 5
|
6 - 10
|
> 10
|
|
Lead time (days)
|
14
|
30
|
To be negotiated
|
3,Product parameters
|
PRODUCT MODEL
|
Huahui-136565-A
|
Huahui-167575-A
|
Huahui-219090-A
|
|
External dimensions (H * W * D)
|
1300*650*650
|
1600*750*750
|
2100*900*900
|
|
Internal dimensions (H * W * D)
|
1100*600*600
|
1400*650*650
|
1800*800*800
|
|
Cabinet material
|
Steel plate/stainless steel
|
|
Maintenance method
|
Front opening door/front and rear opening door
|
|
Heat dissipation method
|
Air conditioner/fan
|
|
protection grade
|
IP55/IP65
|
|
Equipment layer rack
|
Equipment rack/battery rack/comprehensive rack
|
|
Installation method
|
Ground installation
|
|
Brand
|
Huahui
|
Key Features
High reliability
The cabinet has good performance in EMC (Electromagnetic Compatibility), protection, and resistance to external damage, and can reach a protection level of IP55; Adapt to various complex outdoor environments such as high temperature, severe cold, wind and rain, thunderstorms, etc
Adopting dual heat dissipation units and dual fan design, the operation is safer and more reliable; Sealed design effectively isolates harmful dust and gas corrosion from the outside;
Equipped with a maximum 60KA lightning protection module and MDF side line security unit, effectively preventing lightning strikes and ensuring the safety and reliability of the equipment.
Green and environmentally friendly
The heat exchanger fan has automatic speed regulation, low-speed rotation at room temperature, low noise, low power consumption, and meets the installation requirements of residential areas.
High security
The cabinet doors are equipped with built-in hinges to prevent prying and theft; Built in cabinet mounting holes, good anti-theft performance;
The cabinet equipment compartment adopts HW-2801 type door lock configuration, and the wiring compartment adopts HW-2801B type door lock configuration, and supports external door locks for easy protection of internal equipment in the cabinet. The cabinet can support enhanced anti-theft measures such as electronic door locks, sound and light alarms, and battery reinforced protective barriers
Equipment and MDF compartment design, decentralized maintenance.
One stop delivery
Cabinet integrated main equipment, power supply MDF/ODF, Monitoring system and other components
One stop shipping, no need for secondary integration on site, quick installation
Convenient maintenance
The equipment in the cabinet equipment compartment supports pre maintenance, and the MDF (Main Distribution Frame) in the wiring compartment supports front wiring operation.
The cabinet can be equipped with portable lighting fixtures for easy maintenance and operation at night.
AC power maintenance sockets can be optionally installed inside the cabinet to provide power for maintenance terminals and facilitate on-site maintenance.
Comprehensive monitoring
Real time monitoring and remote alarm of various monitoring quantities inside the cabinet.
Provide monitoring of the environment, such as temperature, humidity, and access control. Simultaneously provide monitoring of the expansion environment.
Provide monitoring of power supply equipment, such as power systems and batteries.
Provide monitoring of components such as patch panels, lightning protection modules, and cabinet fans.
