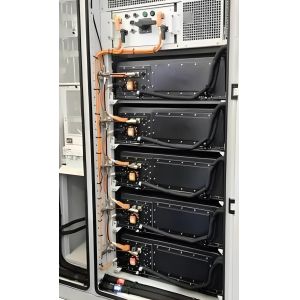

Commercial Energy Storage Cabinet 100kw 220kWh Commercial Battery Storage

  • 1
  • 2
  • 3

Place of Origin : Shenzhen, Guangdong, China

Brand Name : HUAHUI

MOQ : 1

Packaging Details : Standard Packaging

Delivery Time : Expected shipment within 30 days after successful payment

Payment Terms : D/P T/T

Price : 700-7000 USD per set

Supply Ability : 5000 units per year

Certification : UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS

type : Energy Storage Cabinet

product name : electrical energy storage

application : Industrial and commercial

feature : waterproof

advantage : high Efficiency, energy saving

design : Modular design

Contact Now

100kw/220kWh Liquid Cooled Large-Scale Commercial Energy Storage Cabinet Unit

We offer comprehensive energy storage cabinet solutions tailored to meet specific commercial requirements. Contact us via email or WhatsApp for customized solutions and product inquiries.

Product Overview

This 220kWh industrial and commercial energy storage system is a fully integrated, pre-configured solution designed for:

  • Photovoltaic energy systems
  • Industrial and commercial applications
  • Grid and power plant installations
  • Charging stations and public service facilities

The system is particularly suitable for off-grid microgrid applications in areas with unstable electricity supply, including remote locations, islands, and oil extraction sites. Key functionalities include self-consumption optimization, emergency backup power, and integration with diesel generators or wind turbines.


Key Features

  • Safety: Multi-level protection with software, hardware, and electrical safeguards. Independent cabinets provide electrical and fire safety isolation. DC to AC conversion prevents arcing.
  • Efficiency: Cluster management eliminates parallel losses. PCS three-level topology achieves up to 99% efficiency.
  • High Integration: Combines battery, BMS, PCS, EMS, fire protection, and temperature control in one unit.
  • User-Friendly: Rapid deployment capability. Modular design for easy maintenance and expansion. Supports cloud monitoring and mobile app access.
Technical Specifications
Parameter Category Specification
Cell Type Lithium iron phosphate 280Ah battery cell
Rated Energy 896Wh
Rated Voltage 3.2V
Depth Of Discharge 90%
Cycle Life >6000 (25℃,0.5C,80%EOL)
DC Side Parameters
Rated Capacity 215kWh
Battery Voltage Range 624V~864V
Maximum DC Current 150A
Number of Battery Modules 5
AC Side Parameters
Rated Power 100kW
Rated Grid Voltage 400V
Allowable Voltage Range 360V~440V
Power Factor >0.99
AC Access Method Three-phase four-wire system
System Parameters
System Efficiency >90%
Weight 3000kg
Dimensions 1500×2300×1650mm
Cooling Method Liquid cooling
Operating Temperature -30~50℃
Protection Grade IP54
Optional Features
Wireless Communication 4G, GPS/Beidou
Remote Monitoring Cloud EMS, mobile app
Automatic Off-Grid Switching STS module
Our team is ready to assist with your energy storage requirements. Contact us today to discuss customized solutions for your specific application needs.
