30kw 60kWh Photovoltaic Energy Storage Integrated Machine Air Cooled

  • 1
  • 2
  • 3

Place of Origin : Shenzhen, Guangdong, China

Brand Name : HUAHUI

MOQ : 1

Packaging Details : Standard Packaging

Delivery Time : Expected shipment within 30 days after successful payment

Payment Terms : D/P T/T

Price : 700-7000 USD per set

Supply Ability : 5000 units per year

Certification : UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS

type : Energy Storage Cabinet

product name : electrical energy storage

application : Industrial and commercial

feature : waterproof

advantage : high Efficiency, energy saving

design : Modular design

Contact Now

Photovoltaic Energy Storage Cabinet 30kw/60kWh Integrated Machine Air-Cooled
We offer comprehensive energy storage cabinet solutions tailored to your specific requirements. Contact us via email or WhatsApp for inquiries and personalized assistance.
Product Introduction
  • Compact industrial and commercial energy storage system with fully integrated pre-configured solution
  • Ideal for homes, villas, supermarkets, farms, and outdoor construction applications
  • Off-grid microgrid system suitable for areas with unstable electricity or no grid access
  • Primary functions include self-consumption, emergency backup power, and management of oil engines/wind turbines
  • Efficient solution for small/medium enterprises with parallel cabinet expansion capability
Key Features
Security
  • Multi-level protection: software + hardware + electrical safeguards
  • Independent cabinets for electrical and fire safety isolation
  • DC to AC conversion prevents DC arcing
Efficiency
  • Cluster management eliminates parallel losses
  • PCS three-level topology with 99% maximum efficiency
High Integration
  • Combined battery + BMS + PCS + EMS + fire protection + temperature control
User-Friendly
  • Rapid deployment with decentralized configuration
  • Easy expansion with AC-side parallel cabinet connection
  • Modular design simplifies maintenance
  • Cloud monitoring and mobile app support
Technical Specifications
Parameter Category Specification
Rated battery capacity 100Ah
Battery nominal voltage 614.4V
Battery voltage range 518.4-691.2V
Combination method 192S1P
Standard charge/discharge current 50A
Dimensions 1068×1035×1850 mm
Weight ≈900Kg
Working temperature range 0~55°C (-20~60°C storage)
DC side ceiling voltage 850V
PV maximum power 38.4KW
AC output power 30KVA
Maximum efficiency 97.80%
Protection rating IP54
Cooling method Intelligent forced air cooling
Certifications CE compliant
Product Images

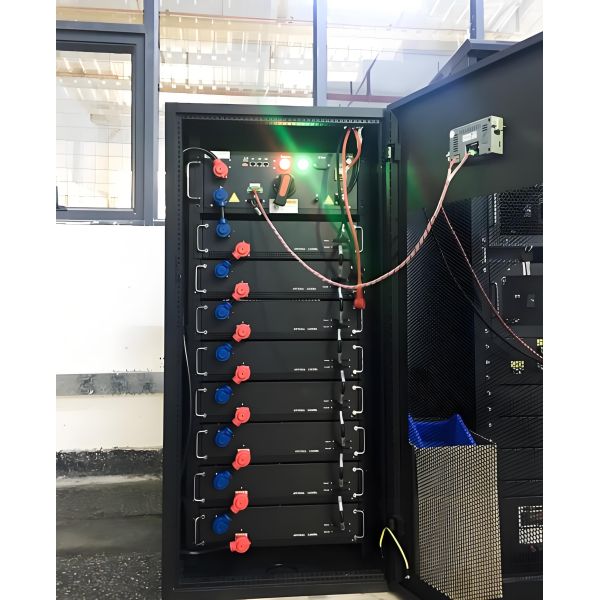

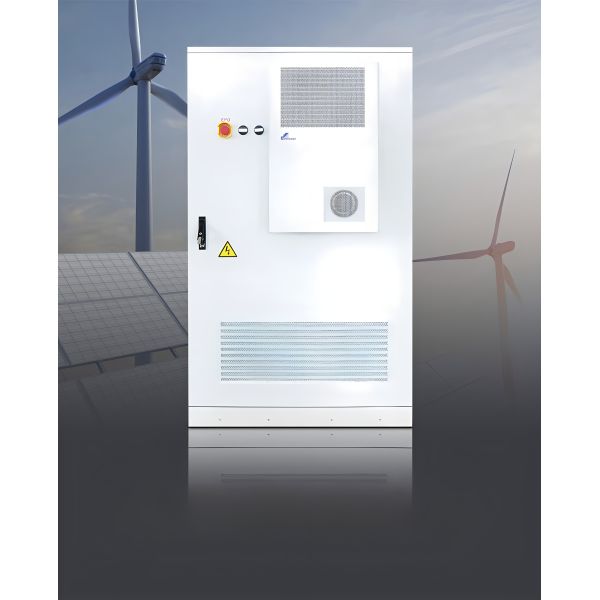

30kw 60kWh Photovoltaic Energy Storage Integrated Machine Air Cooled
Custom Solutions Available

Contact us to discuss your specific energy storage requirements and receive a tailored solution.
