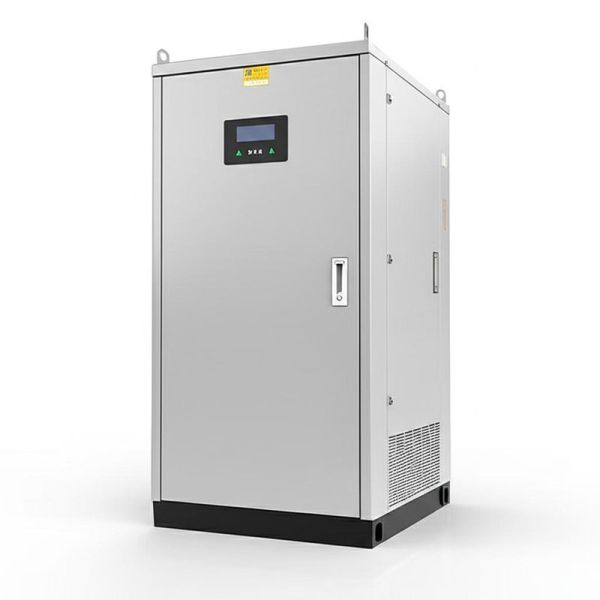

IP55 Waterproof Industrial And Commercial Energy Storage 215KWH

  • 1
  • 2

Place of Origin : Shenzhen, Guangdong, China

Brand Name : HUAHUI

MOQ : 1

Packaging Details : Standard Packaging

Delivery Time : Expected shipment within 30 days after successful payment

Payment Terms : D/P T/T

Price : 700-7000 USD per set

Supply Ability : 5000 units per year

Certification : UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS

type : Energy Storage Cabinet

product name : electrical energy storage

application : Industrial and commercial

feature : waterproof

advantage : high Efficiency, energy saving

design : Modular design

Contact Now

Industrial and Commercial Energy Storage Cabinet - 215KWH with IP55 Waterproof Rating and Air Conditioning
We offer a comprehensive range of energy storage cabinet products with customizable solutions to meet specific requirements. Contact us via email or WhatsApp for inquiries. Our team is committed to providing expert assistance.
Product Introduction
  • Fully integrated pre-configured solution suitable for photovoltaic energy, industrial/commercial applications, power grids, power plants, charging stations, and public services
  • Off-grid microgrid systems ideal for areas with unstable electricity, including villas, farms, islands, and oil extraction sites
  • Designed for industrial and commercial microgrid energy storage solutions with high efficiency and reliability for SMEs
  • Supports parallel cabinet connection for increased capacity
Product System Diagram IP55 Waterproof Industrial And Commercial Energy Storage 215KWH
01 Cooling air duct
06 Fire Protection System
02 Air conditioning system
07 EMS Display Screen
03 Battery PACK
08 EMS host
04 High voltage BMS
09 PCS
05 High Voltage Box
10 Distribution System
Main Features
  • Security: Multi-level protection (software+hardware+electrical), independent safety cabinets, DC to AC conversion to prevent arcing
  • Efficient: Cluster management eliminates parallel losses, PCS three-level topology with 99% efficiency
  • High Integration: Combines battery, BMS, PCS, EMS, fire protection, and temperature control
  • Easy to Use: Rapid deployment, modular design, cloud monitoring and mobile app support
Technical Specifications
Air-Cooled Energy Storage Cabinets
PRODUCT MODEL HH-906868 HH-136868 HH-167676 HH-209595 HH-259595 HH-211111 HH-251919 HH-211711
Battery Capacity 10-15kWh 20-25kWh 30-35kWh 45kWh 55kWh 100kWh 100kWh 200kWh
External Dimensions (H*W*D mm) 900*680*680 1300*680*680 1600*760*760 2050*950*950 2500*950*950 2100*1050*1050 2500*1850*1150 2100*1650*1050
PCS Power 3-5kW 8-10kW 8-10kW 10-20kW 20-30kW 50kW 50kW 100kW
Protection Grade IP20/IP55/IP66
Liquid-Cooled Energy Storage Cabinets
PRODUCT MODEL HH-221313-A HH-221313-B HH-229613
Battery Capacity 325kWh 232kWh 232kWh
External Dimensions (H*W*D mm) 2265*1330*1330 2265*1330*1330 2265*960*1330
PCS Power 100kW
Protection Grade IP20/IP55/IP66
Detailed Product Parameters
The product line includes various configurations from 10kWh to 430kWh capacity, with options for air-cooled or liquid-cooled systems, different protection grades (IP55/IP66), and customizable PCS parameters. All cabinets feature steel/stainless steel construction with optional fire protection systems and power distribution units.
