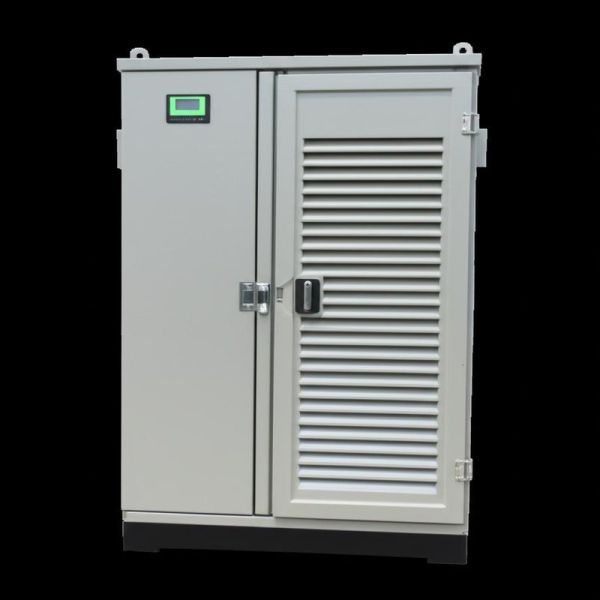

IP55 Outdoor Electrical Enclosures Cabinets Customized Communication Cabinet

Place of Origin : Shenzhen, Guangdong, China

Brand Name : HUAHUI

MOQ : 1

Packaging Details : Standard Packaging

Delivery Time : Expected shipment within 30 days after successful payment

Payment Terms : D/P T/T

Price : 599-59999 USD per set

Supply Ability : 5999 units per year

Certification : UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS

product name : outdoor electrical cabinets

type : telecom battery cabinet

Protection grade : IP55/IP65

Installation method : Ground installation

feature : High security

Application : 4G/5G communication base station

Operatingtemperaturerange : -40°C to +60°C

Illumination : DC48V LED Lamp

Enclosure Finish Options : Powder Coated, Galvanized, Painted

Cabinet Layout : Two Compartment

Certifications : UL Listed, CE Certified

Cooling : Air conditioner and fans

Corrosionresistance : Salt spray resistance up to 480 hours

Contact Now

IP55 Outdoor Electrical Enclosures Cabinets Customized Communication Cabinet
Professional outdoor cabinet solution designed for communication infrastructure with robust environmental protection and reliable performance.
Product Overview
This series represents our premium fully enclosed heat exchanger outdoor cabinets. Featuring sealed construction and efficient thermal management, these cabinets withstand extreme environmental conditions including high temperatures, severe cold, desert climates, and offshore locations. The D series cabinets support rapid outdoor deployment of high-capacity copper cables and OLT equipment, with proven reliability recognized by operators in over 100 countries worldwide.
Key Features & Benefits
High Reliability Performance
  • Excellent EMC (Electromagnetic Compatibility) performance with IP55 protection rating
  • Suitable for complex outdoor environments: high temperatures, severe cold, wind, rain, and thunderstorms
  • Dual cooling units and dual fan configuration for enhanced operational safety
  • Sealed design effectively isolates harmful external dust and corrosive gases
  • Maximum 60KA lightning protection module with MDF side line security unit
Energy Efficient Operation
  • Heat exchanger fan with automatic speed adjustment for optimal performance
  • Low-speed operation at room temperature reduces noise and power consumption
  • Complies with residential area installation requirements
Enhanced Security Features
  • Built-in hinges for anti-pry and anti-theft protection
  • Built-in cabinet mounting holes for improved theft resistance
  • HW-2801 door lock for equipment compartment, HW-2801B for wiring compartment
  • Supports external door locks, electronic locks, audible/visual alarms, and reinforced battery protection
  • Separate equipment and MDF compartments for decentralized maintenance
Integrated Solution Delivery
  • Complete cabinet integration: main equipment, power supply, MDF/ODF, and monitoring systems
  • One-stop delivery eliminates need for secondary on-site integration
  • Quick installation and deployment capabilities
Convenient Maintenance Design
  • Equipment bay supports front-maintenance access
  • MDF in wiring bay supports front-wiring operations
  • Optional portable interior lighting for night maintenance
  • Available AC power maintenance socket for on-site maintenance tools
Comprehensive Monitoring System
  • Real-time monitoring and remote alarming for all cabinet parameters
  • Environmental monitoring: temperature, humidity, and access control
  • Extended environmental variable monitoring capabilities
  • Power supply equipment monitoring: power systems and batteries
  • Component monitoring: patch panels, lightning protection modules, and cabinet fans
Technical Specifications
Parameter Specification
Cabinet Dimensions 1750mm x 800mm x 1850mm (W x D x H)
Battery Capacity Two sets of 150Ah batteries
Maximum Weight (without battery) 550kg
Maximum Weight (with battery) 950kg
Operating Environment -45℃ to +45℃
Noise Standards ETS300753 CLASS 4.1E City Level
Heat Dissipation Heat exchanger system
Maximum Cooling Capacity 3000W
Service Configuration Options
Configuration 2 DC MA5600T 2 DC HABDs + 1 DC HABF
Number of Users 1536 (POTS + ADSL2+)
1024 (POTS + VDSL2/ADSL2+)
1792 VDSL2/ADSL2+
2048 POTS		 1312 (POTS + ADSL2+)
1856 POTS + 384 ADSL2+
2688 POTS
Custom Solutions Available
We offer comprehensive outdoor cabinet products and can develop tailored solutions to meet your specific requirements. Contact us via email or WhatsApp for detailed inquiries. We're committed to providing exceptional support and service.
We wish you productive work experiences and a fulfilling life!
