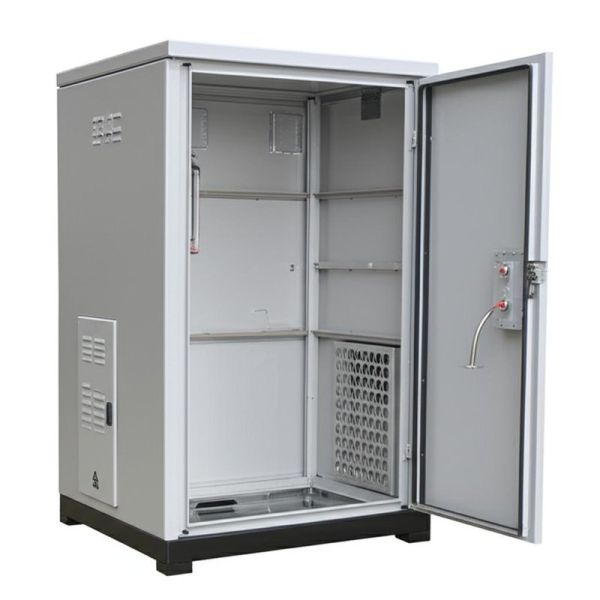

Fully enclosed small communication power supply fire Outdoor Communication Cabinet
The S series cabinet is a small-capacity enclosed natural cooling cabinet we have launched. The cabinet adopts an enclosed design and utilizes natural cooling based on the principles of heat convection and heat conduction, achieving cooling without the need for fans or heat exchangers.
The S series cabinet is a small-capacity enclosed natural cooling cabinet we have launched. The cabinet adopts an enclosed design and utilizes natural cooling based on the principles of heat convection and heat conduction, achieving cooling without the need for fans or heat exchangers. Currently, the S series includes two products, F01S50 and S200, which can be installed on walls or poles and are suitable for harsh conditions such as deserts, severe cold, and offshore areas, demonstrating strong environmental adaptability. It supports both AC and remote power supply modes, meeting the rapid outdoor deployment and application requirements of copper cables and OLT equipment of different capacities.
Key Features
• Safe and reliable: The cabinet features a sealed design with an IP55 rating, effectively isolating it from harmful external dust and corrosive gases. With a maximum lightning protection of 40KA, it ensures greater safety for outdoor applications, reducing equipment damage and maintenance costs
• Green energy saving: The industry-leading internal and external heat exchange natural cooling design effectively reduces site energy consumption. By replacing the enhanced cooling module, the cooling capacity of the cabinet can be upgraded, supporting the evolution of equipment inside the cabinet towards higher density and higher speed services.
• Ultra-quiet: The fully enclosed design not only enhances equipment reliability but also achieves excellent sound insulation, with an average noise level 10dBA lower than the industry average, providing greater flexibility in site selection.
• One-stop installation: The S series outdoor cabinet is shipped with integrated host equipment, MDF, ODF, power distribution equipment, batteries, battery heating plates, enhanced cooling modules, and cabinet fans, etc. It can be directly installed upon arrival at the site, eliminating the need for secondary construction and effectively shortening the construction period.
• Intelligent management: The S series outdoor cabinet supports remote intelligent management, enabling intelligent operation and maintenance of environmental temperature, access control, lightning protection modules, and fan status information through intelligent accessories.
Product parameters
|
Cabinet size without battery compartment
|
750mm x 350mm x850mm (width x depth x height)
|
|
Cabinet size with battery compartment
|
750mm x 350mm x1120mm (W x D x H)
|
|
Cabinet size, including battery compartment and forced cooling module
|
750mm x 350mm x1200mm (width x depth x height)
|
|
Battery capacity
|
1 set of 26Ah or 40Ah batteries
|
|
Maximum weight of cabinet
|
72kg (excluding battery compartment and forced cooling module)
147kg (including battery and forced cooling module, 40AH battery), of which the battery compartment weighs 13kg and the forced cooling module weighs 4kg
|
|
Operating environment
|
-33℃ to +40℃ (with solar radiation of 1120W/m²)
|
|
Noise standards
|
ETS300753 CLASS 4.1E PROTECTED AREA LEVEL
|
|
Heat dissipation form
|
Closed self-cooling
|
|
Maximum cooling capacity of the cabinet
|
Self-cooling: 45℃/380W; or 50℃/300W. Forced cooling: 55℃/420W; or 50℃/550W
|
We offer a wide range of outdoor cabinet products and can tailor solutions and products to meet your specific needs. You are welcome to reach out via email or WhatsApp for inquiries. We are committed to providing you with the utmost assistance. May your work be enjoyable and your life filled with happiness!
