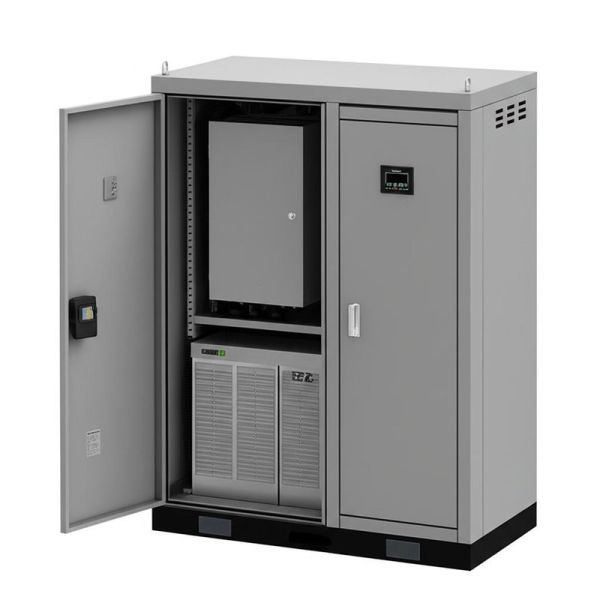

Fully enclosed large Outdoor Communication Cabinet
This series of cabinets is our classic fully enclosed heat exchanger outdoor cabinet. The cabinet adopts a sealed design and an efficient heat exchanger solution, which can adapt to various harsh climatic environments such as high temperatures, severe cold, deserts, and offshore areas, meeting the rapid outdoor deployment and application of high-capacity copper cables and OLT equipment.
Product Introduction
This series of cabinets is our classic fully enclosed heat exchanger outdoor cabinet. The cabinet adopts a sealed design and an efficient heat exchanger solution, which can adapt to various harsh climatic environments such as high temperatures, severe cold, deserts, and offshore areas, meeting the rapid outdoor deployment and application of high-capacity copper cables and OLT equipment. The high reliability of the D series cabinets has been recognized by operators worldwide and is currently being used in more than 100 countries globally.
Key Features
High reliability
• The F01D2000 cabinet exhibits excellent performance in EMC (Electromagnetic Compatibility), protection, and resistance to external damage, achieving a protection level of IP55; it is suitable for various complex outdoor environments such as high temperatures, severe cold, wind, rain, and thunderstorms
• The design incorporates dual cooling units and dual fans, ensuring safer and more reliable operation; the sealed design effectively isolates harmful external dust and corrosive gases;
Equipped with a maximum 60KA lightning protection module and MDF side line security unit, it effectively prevents lightning surge and ensures the safety and reliability of the equipment.
Green and environmentally friendly
• The heat exchanger fan automatically adjusts its speed, operating at low speed at room temperature, resulting in low noise and low power consumption, meeting the installation requirements in residential areas.
Green and environmentally friendly
• The heat exchanger fan automatically adjusts its speed, operating at low speed at room temperature, resulting in low noise and low power consumption, meeting the installation requirements in residential areas.
High security
• The cabinet door of F01D2000 features built-in hinges for anti-pry and anti-theft purposes; it also has built-in cabinet mounting holes, ensuring good theft resistance;
• The cabinet equipment compartment adopts HW-2801 door lock configuration, while the wiring compartment adopts HW-2801B door lock configuration, and supports external door locks for easy protection of the equipment inside the cabinet. The cabinet can support enhanced anti-theft measures such as electronic door locks, audible and visual alarms, and reinforced protective bars for batteries
• Equipment and MDF are designed in separate compartments for decentralized maintenance.
One-stop delivery
• Cabinet integrates main equipment, power supply, MDF/ODF, monitoring system, and other components
• One-stop delivery, no need for secondary integration on site, quick installation
Convenient maintenance
• The equipment inside the F01D2000 cabinet's equipment bay supports front-maintenance, and the MDF (Main Distribution Frame) inside the wiring bay supports front-wiring operations.
• A portable lighting lamp can be installed inside the cabinet for easy maintenance and operation at night.
• An AC power maintenance socket can be optionally equipped inside the cabinet to supply power for maintenance terminals, facilitating on-site maintenance.
Comprehensive monitoring
• Real-time monitoring and remote alarming of various monitoring parameters within the F01D2000 cabinet.
• Provide monitoring of the environment, such as temperature, humidity, and access control. At the same time, provide monitoring of extended environmental variables.
• Provide monitoring for power supply equipment, such as power systems and batteries.
• Provide monitoring for components such as patch panels, lightning protection modules, and cabinet fans.
Product parameters
| Cabinet size | 1750mm x 800mm x1850mm (W x D x H) |
| Battery capacity | Two sets of 150Ah batteries |
| Maximum weight of cabinet (without battery) | 550kg |
| Maximum weight of cabinet (with battery) | 950kg |
| Operating environment | -45℃～+45℃ |
| Noise standards | ETS300753 CLASS 4.1E City Level |
| Heat dissipation form | heat exchanger |
| Maximum cooling capacity of the cabinet | 3000W |
service configuration
| configuration | 2 DC MA5600T | 2 DC HABDs +1 DC HABF |
|
| Number of users | 1536 (POTS + ADSL2+) 1024 (POTS + VDSL2/ADSL2+) 1792 VDSL2/ADSL2+ 2048 POTS | 1312 (POTS + ADSL2+) 1856 POTS + 384 ADSL2+ 2688 POTS |
|
